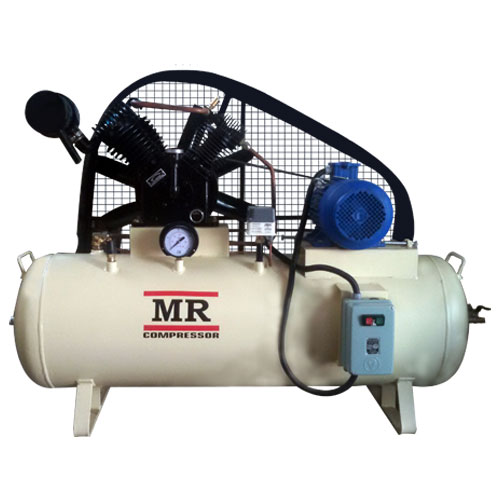

Piston Compressor Description
SPECIAL FEATURES
Cylinder : Special cast Iron, Deep Finned for quick heat dissipation.
Piston : Low expansion Alluminium Alloy.
Valve Plate : Special Steel Material for high Resistance and high Efficiency.
Crank Shaft : Dynamically balanced with Roller/Ball bearings.
Inter / After Cooler : Specially designed cooler to keep the temperature low.
Pressure Switch : Diaphragm operated on and off Pressure Switch With Auto-venting and No-Load Starting
TECHNICAL SPECIFICATION
SINGLE STAGE
| Model | No. of Cylinders | Piston Displacement | Max Pressure | Motor H.P. | Tank Capacity Litres | ||
| Cfm | Lit/Min | Psi | Kg/cm2 | ||||
| MR 10 | 1 | 4.5 | 127 | 100 | 7 | 1 | 110 |
| MR 15 | 1 | 6.5 | 184 | 100 | 7 | 1.5 | 110 |
| MR 20 | 1 | 8 | 227 | 100 | 7 | 2 | 110 |
| MR 30 | 2 | 12.5 | 354 | 100 | 7 | 3 | 160/220 |
| MR 30L | 2 | 13 | 368 | 118 | 8 | 3 | 160 |
| MR 50 | 2 | 22 | 622 | 100 | 7 | 5 | 160/200 |
| MR 75 | 2 | 32.5 | 920 | 100 | 7 | 7.5 | 250 |
| MR 100 | 2 | 42.5 | 1202 | 100 | 7 | 10 | 250 |
| MR 150 | 3 | 60 | 1698 | 100 | 7 | 15 | 415 |
| MR 200 | 3 | 80 | 2264 | 100 | 7 | 20 | 480 |
TWO STAGE
| MRH 200 | 2 | 7 | 196 | 168 | 12 | 2 | 160/220 |
| MRH 300 | 2 | 11 | 310 | 168 | 12 | 3 | 160/220 |
| MRH 500L | 2 | 17.5 | 500 | 140 | 10 | 5 | 160/220 |
| MRH 500 | 2 | 17.5 | 500 | 168 | 12 | 5 | 220 |
| MRH 600 | 2 | 22 | 635 | 168 | 12 | 7.5 | 220 |
| MRH 1000 | 2 | 35 | 991 | 168 | 12 | 10 | 250/415 |
| MRH 1250 | 2 | 45 | 1273 | 168 | 12 | 12-5 | 415 |

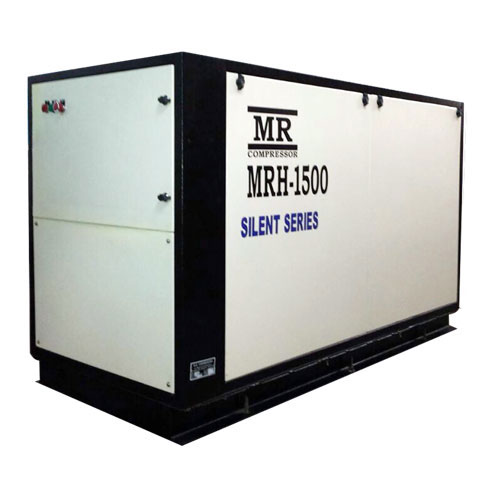

| MRH 1500 | 2 | 54 | 1535 | 168 | 12 | 15 | 415/480 |
HIGH PRESSURE
| MRHP 200 | 2 | 11 | 310 | 425 | 30 | 5 | Skid Mounted |
| MRHP 300 | 2 | 17.5 | 500 | 425 | 30 | 7.5 | Skid Mounted |
| MRHP 600 | 2 | 22.0 | 635 | 425 | 30 | 10 | Skid Mounted |
| MRHP 1000 | 3 | 35 | 991 | 425 | 30 | 15 | Skid Mounted |
